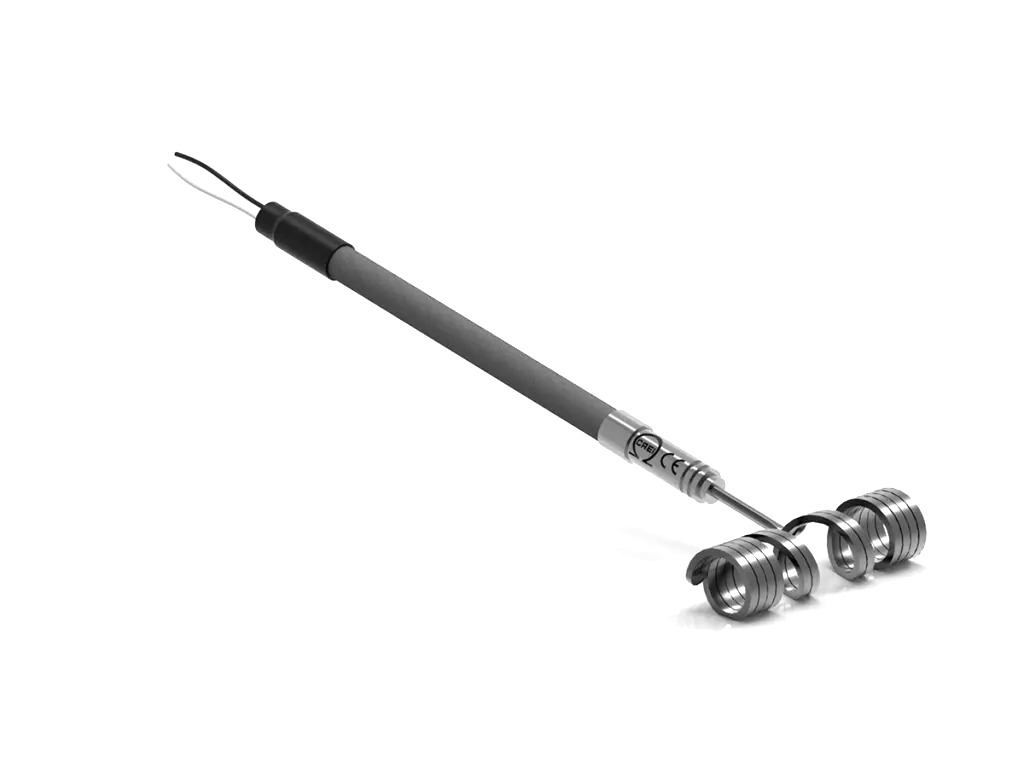

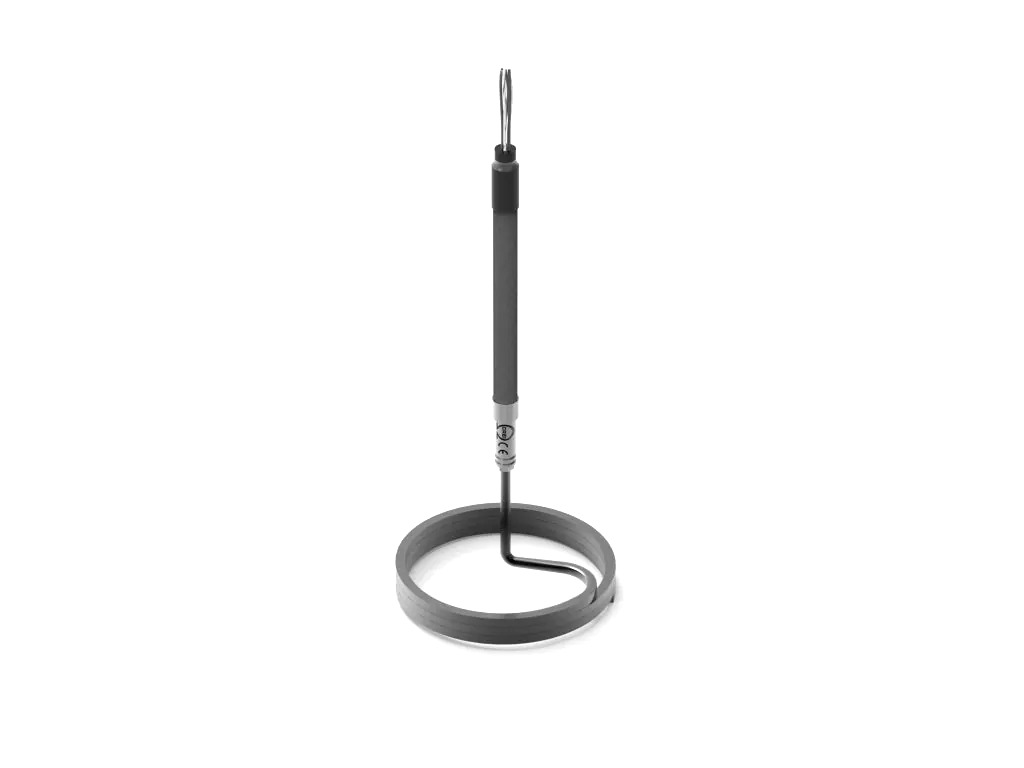

MICROTUBULAR HEATING ELEMENTS
Microtubular Heaters – Advanced Performance in Compact Dimensions
Thermal efficiency in compact spaces with critical heating challenges.
Microtubular heating elements can deliver a power output of up to 9 W/cm² and reach working temperatures of up to 600°C.
Dimensions tailored to the installation space.
This type of element must be pressed against the working surface to ensure efficient heat transfer.
Microtubular heaters represent the most innovative technological expression of compacted MgO electric heating elements.
Their small dimensions and high performance make them ideal for applications where space is limited and high operating temperatures are required for optimal process functionality.
Hot runner systems and plastic injection molding have been their primary fields of application from the beginning, but thanks to their versatility, these heaters are now used in a wide range of industrial applications.
Features
-
Insulating material: Compacted MgO
-
Sheath material: Stainless steel
-
Power output: Single-phase
-
Maximum sheath temperature: 750 °C (depending on application)
-
Supply voltage: 230V (standard)
-
Built-in thermocouple: Fe-CuNi (Type J standard), insulated, positioned at the base
-
Electrical connection: PTFE-insulated nickel cable, 1000 mm length (standard)
Heater dimensions
Type
Section
Minimum bending radius
1.8×3.2
environment
Flat
4 mm
Flat
2.2×4.3
2.5×4.0
Flat
Standard
6 mm
3.3×3.3
Round
4.0
Round
4.0x6.0
Max
Flat
10 mm
Mini Microtubular Heater Series
-
Insulating material: Compacted MgO
-
Sheath material: Stainless steel
-
Maximum sheath temperature: 750 °C (depending on application)
-
Minimum bending radius: 3 mm
-
Supply voltage: 230V (standard)
-
Built-in thermocouple: Not available
-
Electrical connection: PTFE-insulated nickel cable, 1000 mm length (standard)
Microtubular Heater with Reflector Tube
Microtubular heaters with reflector tube, optionally equipped with a reflector tube, offer higher thermal load, more efficient heat transfer, and increased mechanical protection of the heating element.
Controlled temperature measurement is possible using a spiral or integrated thermocouple. The reflector tube can be supplied for all heater sections in the HMC series, in various diameters and lengths, with or without slots and holes.
Packaging Solutions
Microtubular heaters designed and manufactured for packaging and wrapping machinery:
-
sealing bar heating
-
continuous circular welding machines (flow-pack)
-
thermoforming machines
-
blister packaging
-
packaging of tissue products
Thanks to their versatility, microtubular heaters can be spiraled and shaped into various forms, sizes, and power ratings. They are supplied with an integrated thermocouple or an external temperature sensor.
